Funicular

Funicular transforms Playdate into a portable real-time audio effects processor.

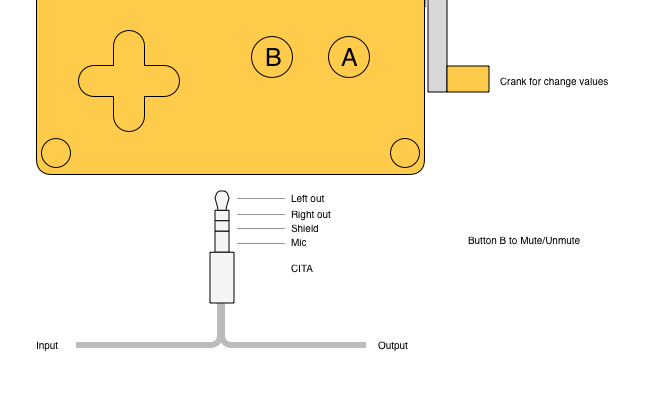

Connect an external audio source using a standard CTIA headset splitter, then build a chain of three DSP effects to create everything from tape wobble and vinyl coloration to delay, fuzz, filters and bit crushing.

The DSP engine is written entirely in C and processes live audio with low latency. Effects can be freely reordered, presets can be saved and recalled, and the crank provides an intuitive way to adjust parameters.

Features

• Real-time audio processing

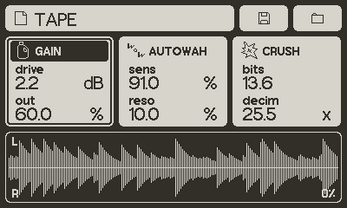

•  3-slot effect chain
•  14 built-in DSP effects
•  Preset management
•  Stereo output
•  Low-latency C DSP engine
•  Designed for Playdate OS 3.1+

Controls

D-Pad

• Move the cursor

Crank

• Adjust the selected parameter
• Rotate through effect types

A

• Confirm

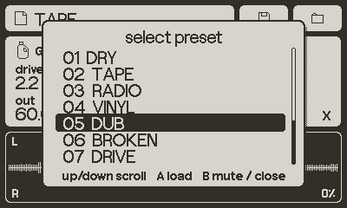

• Open presets
• Save / Load
• Rename preset

B

• Mute / Unmute
• Close preset list

System Menu

• Select input (Device / Headset)
• Select output (Speaker / Headphones / Both)
